Digital Sensor

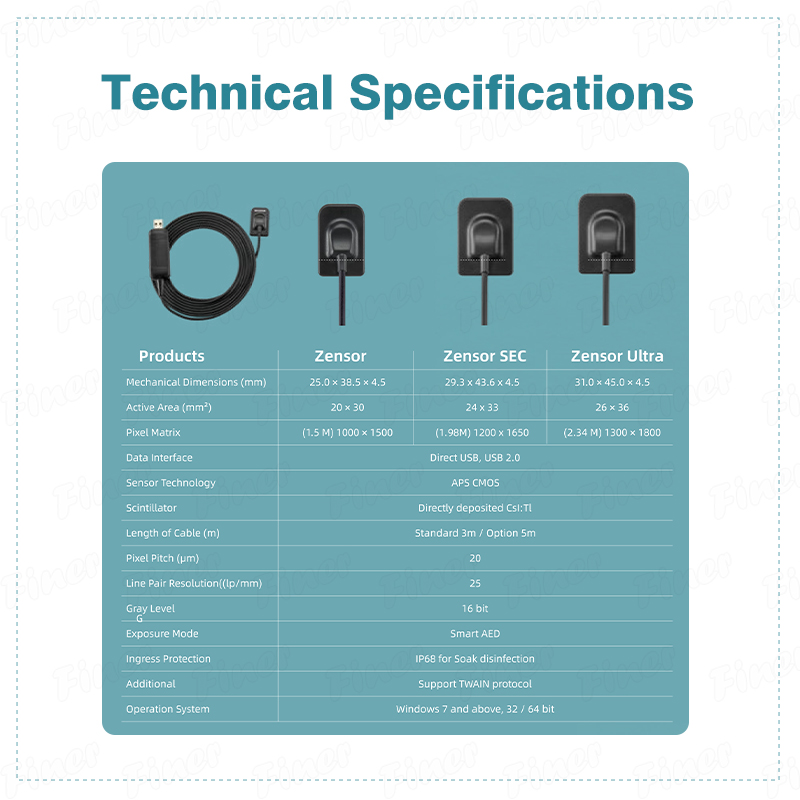

Zensor Series Technical Specifications

Parameter	Zensor	Zensor SEC	Zensor Ultra
Mechanical Dimensions (mm)	25.0 × 38.5 × 4.5	29.3 × 43.6 × 4.5	31.0 × 45.0 × 4.5
Active Area (mm²)	20 × 30	24 × 33	26 × 36
Pixel Matrix	(1.5 M) 1000 × 1500	(1.98M) 1200 × 1650	(2.34 M) 1300 × 1800
Data interface	Direct USB, USB 2.0	Direct USB, USB 2.0	Direct USB, USB 2.0
Sensor Technology	APS CMOS	APS CMOS	APS CMOS
Scintillator	Directly deposited CsI:TI	Directly deposited CsI:TI	Directly deposited CsI:TI
Length of Cable (m)	Standard 3m / Option 5m	Standard 3m / Option 5m	Standard 3m / Option 5m
Pixel Pitch (μm)	20	20	20
Line Pair Resolution (lp/mm)	25	25	25
Gray Level	16 bit	16 bit	16 bit
Exposure Mode	Smart AED	Smart AED	Smart AED
Ingress Protection	IP68 for Soak disinfection	IP68 for Soak disinfection	IP68 for Soak disinfection
Additional	Support TWAIN protocol	Support TWAIN protocol	Support TWAIN protocol

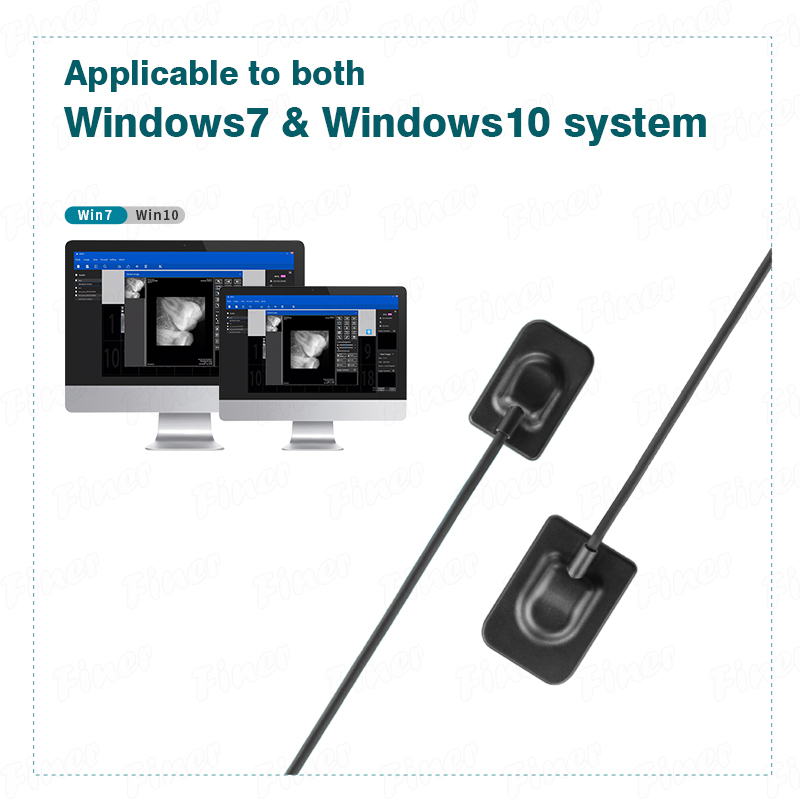

Operation System	Windows 7 and above, 32 / 64 bit	Windows 7 and above, 32 / 64 bit	Windows 7 and above, 32 / 64 bit
